Industrial Steel Panel Commercial garage door 4500-4501

Industrial Steel Panel 4500/4501

Traditional Series
A timeless look that never goes out of style. The Traditional Raised Panel 3610 brings clean lines and classic design, adding depth and character to almost any home. Built with quality materials, this door is as durable as it is attractive.

25 Gauge Steel

Built For Durability

R-Value 6.85

Insulated Options

2" Thick Sections

Durable & Strong
Speak With An ExpertGet A Free Quote

Color Options

White commercial garage door finish options

White

Commercial
Sandstone commercial garage door finish options

Sandstone

Commercial
Gray commercial garage door finish options

Gray

Commercial
Charcoal pebble grain door finish

Charcoal

Pebble Grain
Black pebble grain door finish

Black

Pebble Grain

Technical Specs

Dive into the details that make the Industrial Steel Panel 4500/4501 a superior choice. Explore construction details, door specific features and model options.

Construction

  • Panel Style:Premium Commercial/Industrial Steel Panel
  • Panel Thickness:2"
  • Panel Material:25 Gauge Steel
  • Insulation Type:CFC Free Expanded Polystyrene (4501 feature)
  • R-Value:6.85 (4501 feature)
  • Finish:Pebble Grain Embossed with Deep Rib Profile

Paint System

  • Total Paint Thickness:1.0 Mil
  • Exterior Primer:0.25 Mil Rust Inhibiting
  • Exterior Top Coat:0.75 Mil
  • Surface Protection:Fade & Chalk Resistant

Weatherproofing

  • Joint Type:Tongue and Groove Meeting Rails
  • Bottom Seal:Replaceable U-Type Vinyl Weatherstrip
  • Retainer:Extruded Aluminum

Panel Type

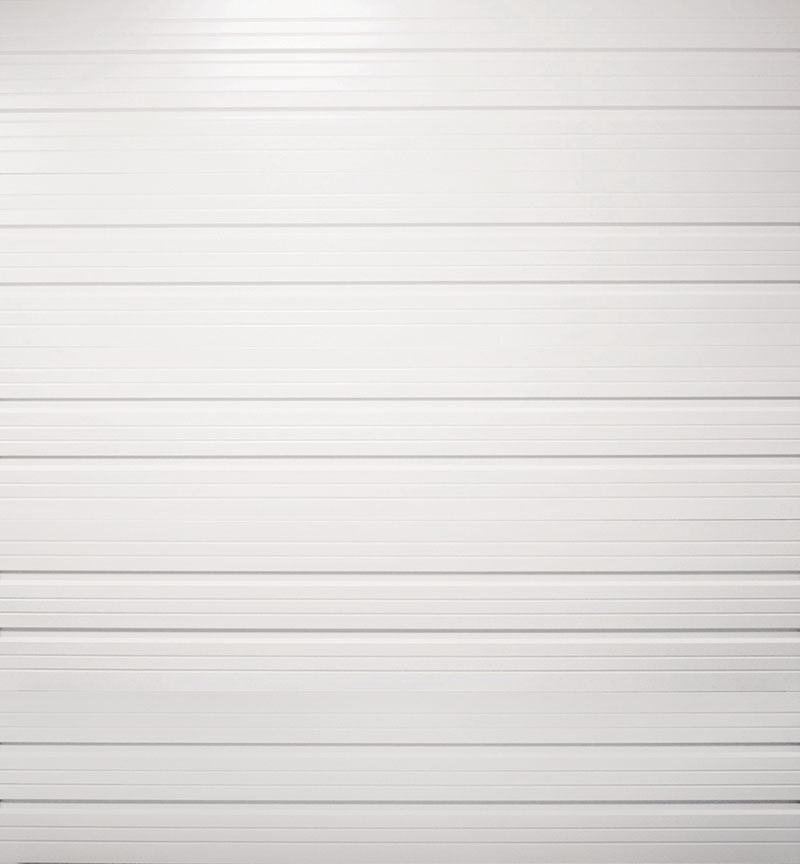

Commercial Industrial Steel Panel Garage Door
Panel Style

Window Options

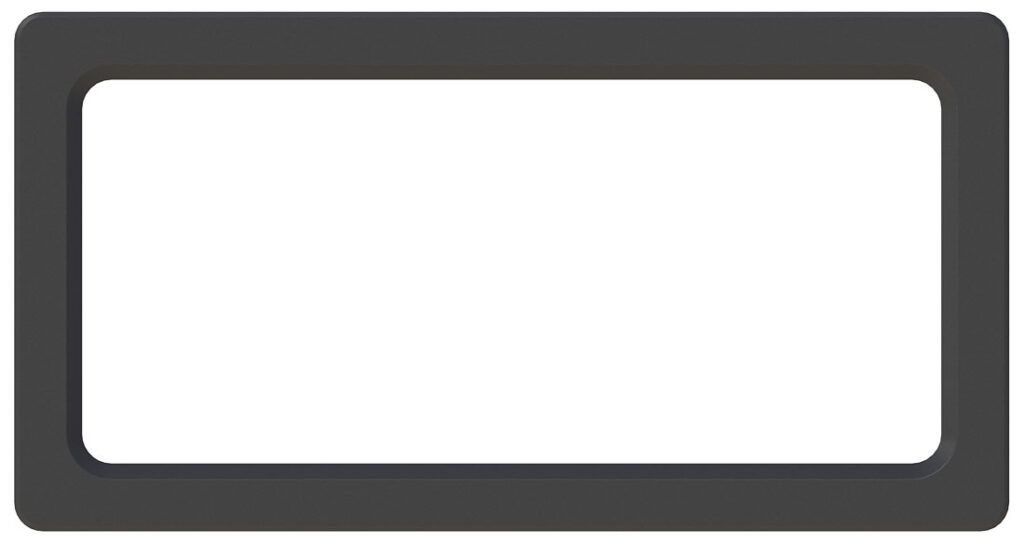

Commercial Garage Door Window Option 24x12

24" x 12"

commercial garage door window option 24x6

24" x 6"

Glass Options

Pattern 62 Window Glass Texture Option

Pattern 62

Gray lite 31 glass option

Gray 31

Gray glass option

Gray

Bronze window glass color option

Bronze

Satin window glass color option

Satin

Clear window glass color option

Clear

Size Options

Door Width Options

8', 9', 10', 12', 14', 15', 16', 17', 18', 20', 22', 24'

Door Height Options:

Section Heights: 18", 21", 24" (contact for details)
