Traditional Raised Panel residential garage door model 510-511

Traditional Raised Panel 510/511

Traditional Series
A timeless look that never goes out of style. The Traditional Raised Panel 3610 brings clean lines and classic design, adding depth and character to almost any home. Built with quality materials, this door is as durable as it is attractive.

25 Gauge Steel

Built For Durability

R-Value 6.85

Insulated Options

3 Color Options

Matches Any Home

2" Thick Sections

Durable & Strong
Speak With An ExpertGet A Free Quote

Color Options

White woodgrain garage door finish

White

Woodgrain
Woodgrain sandstone garage door finish

Sandstone

Woodgrain
Woodgrain almond garage door finish

Almond

Woodgrain
*DISCLAIMER: Colors may vary from actual product.

Technical Specs

Dive into the details that make the Traditional Raised Panel 510/511 a superior choice. Explore construction details, door specific features and model options.

Construction

  • Panel Style:Traditional Raised Panel
  • Panel Thickness:2"
  • Panel Material:25 Gauge Steel
  • Insulation Type:CFC Free Expanded Polystyrene (511 feature)
  • R-Value:6.85 (511 feature)
  • Finish:Deep Woodgrain Texture

Paint System

  • Total Paint Thickness:1.0 Mil
  • Exterior Primer:0.25 Mil Rust Inhibiting
  • Exterior Top Coat:0.75 Mil
  • Surface Protection:Fade & Chalk Resistant

Weatherproofing

  • Joint Type:Tongue and Groove Meeting Rails
  • Bottom Seal:Replaceable U-Type Vinyl Weatherstrip
  • Retainer:Extruded Aluminum

Panel Type

Product image of raised panel garage door
Panel Style

Window Options

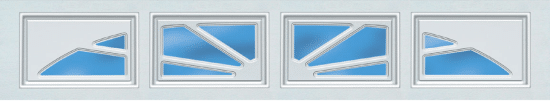

Williamsburg style garage door window option

#305 Williamsburg

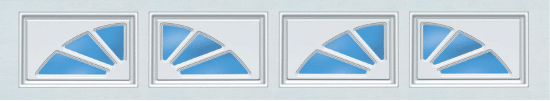

Sherwood style garage door window option

#306 Sherwood

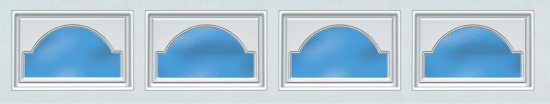

Cathedral style garage door window option

#393 Cathedral

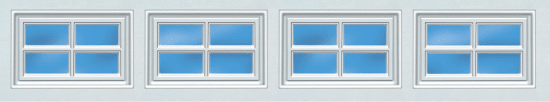

Stockton Style Garage Door Window Option

#397 Stockton

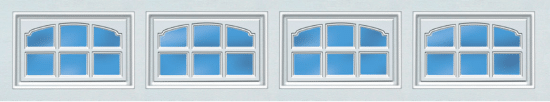

Cascade style garage door window option

#591 Cascade

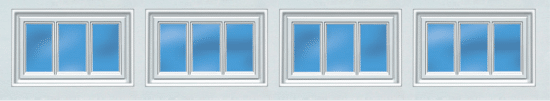

Stockbridge Style garage door window option

#597 Stockbridge

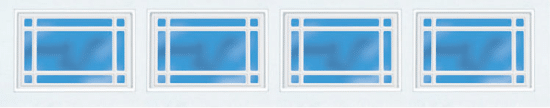

Prairie Style Garage Door Window Option

#897 Prairie

Glass Options

Pattern 62 Window Glass Texture Option

Pattern 62

Gray lite 31 glass option

Gray 31

Gray glass option

Gray

Bronze window glass color option

Bronze

Satin window glass color option

Satin

Clear window glass color option

Clear

Size Options

Door Width Options

8', 9', 10', 12', 14', 15', 16', 17', 18', 20', 22', 24'

Door Height Options:

6'6", 6'9", 7'0", 7'6", 7'9", 8'0"
